Analysis (IAnalysis80)
This interface is composed of methods for analyzing the terrain.
|
|
Methods |
|
|
|
Creates a graphical representation of all regions on the terrain and on 3D models and objects that are visible, within a field of view, from a given viewing point. |
|
|
|
Creates a topographic map that portrays differences in terrain elevation. |
|
|
|
Creates a set of polygons showing the land area covered by water when the water level is rising at a constant rate over a certain period of time |
|
|
|
Creates a set of polygons showing the land area covered by water when the water level rises once |
|
|
|
Creates a visual marker for the existence of a line of sight between two points. |
|
|
|
Creates a slope map on the terrain that can show degree (steepness)and/or aspect (direction). |
|
|
|
CreateThreatDome |
Obsolete. The new threat dome can be created using the ICommand80.Execute method (set the CommandID parameter to 1149 and the parameters parameter to 33). |
|
|
Creates a graphical representation of all the visible areas of the terrain, within a field of view, from a given viewing point. |
|
|
|
Creates a graphical representation of all the visible areas of the terrain, within a field of view, from any selected point along a route. |
|
|
|
Frees resources for a new StartViewshedVisibilityQuery or StartShadowVisibilityQuery call. |
|
|
|
Hides the compare box created by ShowCompareBox. |
|
|
|
Hides the cross section box created by ShowCrossSectionBox. |
|
|
|
Measures the area of the horizontal projection (2D measurement) of a defined region. |
|
|
|
Measures the distance along a line path taking into account terrain contour. |
|
|
|
Measures the perimeter of the horizontal projection (2D measurement). |
|
|
|
Measures the terrain elevation profile along a defined path. |
|
|
|
Measures the surface area (3D measurement) of the defined region, taking into account terrain contours. |
|
|
|
Measures the perimeter of the surface of the defined region, taking into account terrain contours. |
|
|
|
Returns an array of elevation values for a designated area of the terrain. |
|
|
|
Returns an array of elevation values for a designated area of the terrain. The method executes asynchronously, immediately returning an ITerraExplorerAsync80. |
|
|
|
Executes a visibility query based on the parameters set by the last StartViewshedVisibilityQuery or StartShadowVisibilityQuery call. |
|
|
|
Checks the visibility from the origin of the shadow/viewshed source, based on the parameters set by the last StartViewshedVisibilityQuery or StartShadowVisibilityQuery call. |
|
|
|
Assigns objects to either of the two available comparison groups to enable you to compare between the groups, i.e., the two versions of the 3D View, using the ShowCompareBox method. |
|
|
|
Enables you to compare two versions of the 3D View, each of which is composed of a different group of objects, by defining a comparison box with which you can control which of the groups is visible inside the box, and which outside. |
|
|
|
Shows a cross section box that exposes obscured sections of the 3D View. |
|
|
|
Initializes a shadow visibility query for a selected position and shadow effect. |
|
|
|
Initializes a viewshed visibility query for a specific viewshed. |
Create3DViewshed
Creates a graphical representation of all regions on the terrain and on 3D models and objects that are visible, within a field of view, from a given viewing point.
|
JavaScript |
|
|
Create3DViewshed( ViewerPosition, FieldOfViewX, FieldOfViewY, Distance, ParentGroupID, Description) |
|
|
C# |
|
|
I3DViewshed80 Create3DViewshed( IPosition80 ViewerPosition, double FieldOfViewX, double FieldOfViewY, double Distance, string ParentGroupID = "", string Description = "") |
|
|
C++ |
|
|
HRESULT Create3DViewshed( IPosition80* ViewerPosition, double FieldOfViewX, double FieldOfViewY, double Distance, BSTR ParentGroupID, BSTR Description, I3DViewshed80** pI3DViewshed80) |
|
Parameters
ViewerPosition
An IPosition80 representing the viewing point position, defined by its coordinates in the 3D World.
FieldOfViewX
The horizontal angle limits of the viewshed. Values are in degrees from 0 to 120. For a spherical 3D viewshed, the value is 360.
FieldOfViewY
The vertical angle limits of the viewshed. Values are in degrees from 0 to 120. For a spherical 3D viewshed, the value is 360.
Distance
Length, in meters, of the viewshed analysis from the viewer position.
ParentGroupID
The Project Tree group in which the model is created. If it is set to an empty string, the object is created under the root. You can obtain the GroupID by one of the following methods:
· Create the group using IProjectTree80.CreateGroup.
· Find the group, if you know the name, using IProjectTree80.FindItem.
· Traverse the Tree using IProjectTree80 methods such as GetNextItem, until you come to the desired GroupID.
Description
The name of the viewshed object as it appears in the Project Tree. If an empty string is passed to this parameter, TerraExplorer assigns it a unique name.
Return Value
pI3DViewshed80
An I3DViewshed80 representing the newly created 3D viewshed object.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
CreateContourMap
Creates a topographic map that portrays differences in terrain elevation by connecting points of equal elevation with contour lines or by coloring terrain according to varying altitudes. The contour palettes and/or contour lines can be applied to a specified rectangular area, or to the entire terrain using the CoverageArea property of the resulting IContourMap80 object.
|
JavaScript |
|
|
|
|
CreateContourMap( UpperLeftX, UpperLeftY, LowerRightX, LowerRightY, DisplayStyle, PaletteID, GroupID, Description) |
|||
|
C# |
|
|
|
|
IContourMap80 CreateContourMap( double UpperLeftX, double UpperLeftY, double LowerRightX, double LowerRightY, ContourDisplayStyle DisplayStyle = ContourDisplayStyle.CDS_CONTOUR_STYLE_COLORS, string PaletteID = "", string GroupID = "", string Description = "") |
|||
|
C++ |
|
|
|
|
HRESULT CreateContourMap( double UpperLeftX, double UpperLeftY, double LowerRightX, double LowerRightY, ContourDisplayStyle DisplayStyle, BSTR PaletteID, BSTR GroupID, BSTR Description, IContourMap80** pIContourMap80) |
|||
Parameters
UpperLeftX
The West-East coordinate of the contour map’s upper left corner in the project’s coordinate system units.
UpperLeftY
The North-South coordinate of the contour map’s upper left corner in the project’s coordinate system units.
LowerRightX
The West-East coordinate of the contour map’s lower right corner in the project’s coordinate system units.
LowerRightY
The North-South coordinate of the contour map’s lower right corner in the project’s coordinate system units.
DisplayStyle
An enum that determines how the contour map is displayed. The following are the possible values:
· CDS_CONTOUR_STYLE_DEFAULT = -1,
· CDS_CONTOUR_STYLE_LINES = 0 – Displays contour lines at set elevation values.
· CDS_CONTOUR_STYLE_COLORS = 1 - Represents varying altitudes in different colors according to the selected color scheme.
· CDS_CONTOUR_STYLE_LINES_AND_COLORS = 2 - Displays both contour lines and contour colors
PaletteID
The GUID for the palette. GUIDs are listed in the palette XMLs found in the Pseudo directory, which is located under the [TerraExplorer installation]\Lang\1033 folder and under %APPDATA%\Skyline\TerraExplorer.
Note: 1033 is the English language directory. If you are running TerraExplorer in a different language, the Pseudo folder will be located under your language directory.
This parameter is applied only when the DisplayStyle parameter is set to CDS_CONTOUR_STYLE_COLORS or CDS_CONTOUR_STYLE_LINES_AND_COLORS.
GroupID
The Project Tree group in which the contour map object is created. If it is set to an empty string, the object is created under the root. You can obtain the GroupID by one of the following methods:
· Create the group using IProjectTree80.CreateGroup.
· Find the group, if you know the name, using IProjectTree80.FindItem.
· Traverse the Tree using IProjectTree80 methods such as GetNextItem, until you come to the desired GroupID.
Description
The name of the contour map object as it appears in the Project Tree. If an empty string is passed into this parameter, TerraExplorer assigns it a unique name.
Return Value
pIContourMap80
An IContourMap80 representing the newly created contour map object.
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list, as well as the following values:
|
TE_E_INFOTREE_PARENTNOTGROUP |
The group ID entered does not represent a valid group in the Project Tree. |
|
TE_E_INFOTREE_ITEMNOTGROUP |
The item entered is not a group and therefore cannot be used as a group. |
|
TE_E_INFOTREE_CANTUSEROOT |
Cannot use Tree root for this operation |
|
TE_E_INFOTREE_ITEMISGROUP |
Item ID is a group so an object cannot be retrieved. |
CreateFloodContinuousWaterRise
Creates a set of polygons showing the land area covered by water when the water level is rising at a constant rate over a certain period of time (rate of rise and rise interval set by user).
|
JavaScript |
|
|
CreateFloodContinuousWaterRise( OriginX, OriginY, Radius, WaterRiseRate, SampleInterval, TimeSampleIntervalHours, StartTime, EndTime, GroupID, Description) |
|
|
C# |
|
|
string CreateFloodContinuousWaterRise( double OriginX, double OriginY, double Radius, double WaterRiseRate, double SampleInterval, double TimeSampleIntervalHours, object StartTime, object EndTime, string ParentGroupID = "", string Description = "") |
|
|
C++ |
|
|
HRESULT CreateFloodContinuousWaterRise( double OriginX, double OriginY, double Radius, double WaterRiseRate, double SampleInterval, double TimeSampleIntervalHours, VARIANT StartTime, VARIANT EndTime, BSTR ParentGroupID, BSTR Description, BSTR *FloodGroupID) |
|
Parameters
OriginX
The flood origin’s x-coordinate (longitude).
OriginY
The flood origin’s y-coordinate (latitude).
Radius
The radius of the area on which the flood analysis is being performed.
WaterRiseRate
The rate the water is rising (meters per hour).
SampleInterval
The distance between terrain sample points. The smaller the sample interval, the more accurate the calculation, but the longer it takes to calculate.
TimeSampleIntervalHours
The time between terrain samples within the time period between the StartTime and EndTime. A shorter sample size is more accurate but slower to calculate.
StartTime
The date and time the water begins to rise. See “Time” for more information on valid formats for this parameter.
EndTime
The date and time the water stops rising. See “Time” for more information on valid formats for this parameter.
ParentGroupID
The Project Tree group in which the flood analysis object is created. If it is set to an empty string, the object is created under the root. You can obtain the GroupID by one of the following methods:
· Create the group using IProjectTree80.CreateGroup.
· Find the group, if you know the name, using IProjectTree80.FindItem.
· Traverse the Tree using IProjectTree80 methods such as GetNextItem, until you come to the desired GroupID.
Description
The name of the flood analysis object as it appears in the Project Tree. If an empty string is passed into this parameter, TerraExplorer assigns it a unique name.
Return Value
FloodGroupID
The ID of the flood polygon set.
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list, as well as the following values:
|
TE_E_INFOTREE_PARENTNOTGROUP |
The group ID entered does not represent a valid group in the Project Tree. |
|
TE_E_INFOTREE_ITEMNOTGROUP |
The item entered is not a group and therefore cannot be used as a group. |
|
TE_E_INFOTREE_CANTUSEROOT |
Cannot use Tree root for this operation |
|
TE_E_INFOTREE_ITEMISGROUP |
Item ID is a group so an object cannot be retrieved. |
CreateFloodSingleWaterRise
Creates a set of polygons showing the land area covered by water when the water level rises once (initial water level set by user).
|
JavaScript |
|
|
CreateFloodSingleWaterRise( OriginX, OriginY, Radius, TotalWaterLevelRaise, SampleInterval, GroupID, Description) |
|
|
C# |
|
|
string CreateFloodSingleWaterRise( double OriginX, double OriginY, double Radius, double TotalWaterLevelRaise, double SampleInterval, string ParentGroupID = "", string Description = "") |
|
|
C++ |
|
|
HRESULT CreateFloodSingleWaterRise( double OriginX, double OriginY, double Radius, double TotalWaterLevelRaise, double SampleInterval, BSTR ParentGroupID, BSTR Description, BSTR *FloodGroupID) |
|
Parameters
OriginX
The flood origin’s x-coordinate (longitude).
OriginY
The flood origin’s y-coordinate (latitude).
Radius
The radius of the area on which the flood analysis is being performed.
TotalWaterLevelRaise
The total number of meters the water rises.
SampleInterval
The distance between terrain sample points. The smaller the sample interval, the more accurate the calculation, but the longer it takes to calculate.
ParentGroupID
The ID of the group in which the flood analysis object is created. If it is set to an empty string, the object is created under the root. You can obtain the GroupID by one of the following methods:
· Create the group using IProjectTree80.CreateGroup.
· Find the group, if you know the name, using IProjectTree80.FindItem.
· Traverse the Tree using IProjectTree80 methods such as GetNextItem, until you come to the desired GroupID.
Description
The name of the flood analysis object as it appears in the Project Tree. If an empty string is passed into this parameter, TerraExplorer assigns it a unique name.
Return Value
FloodGroupID
The ID of the flood polygon set.
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list, as well as the following values:
|
TE_E_INFOTREE_PARENTNOTGROUP |
The group ID entered does not represent a valid group in the Project Tree. |
|
TE_E_INFOTREE_ITEMNOTGROUP |
The item entered is not a group and therefore cannot be used as a group. |
|
TE_E_INFOTREE_CANTUSEROOT |
Cannot use Tree root for this operation |
|
TE_E_INFOTREE_ITEMISGROUP |
Item ID is a group so an object cannot be retrieved. |
CreateLineOfSight
Creates a visual marker for the existence of a line of sight between two points.
|
JavaScript |
|
|
CreateLineOfSight( ViewerPosition, SampleInterval, arrTargetPosition, GroupID, Description) |
|
|
C# |
|
|
ILineOfSight80 CreateLineOfSight( IPosition80 ViewerPosition, double SampleInterval, object arrTargetPosition, string ParentGroupID = "", string Description) |
|
|
C++ |
|
|
HRESULT CreateLineOfSight( IPosition80 * ViewerPosition, double SampleInterval, VARIANT arrTargetPosition, BSTR ParentGroupID, BSTR Description, ILineOfSight80 ** pLineOfSight) |
|
Parameters
ViewerPosition
The position of the viewer, defined by its coordinates in the 3D world.
SampleInterval
The distance between terrain samples for the measurement along each line. A smaller sample size is more accurate but slower to calculate.
arrTargetPosition
An array of IPosition80 objects that contains the target positions in the 3D World.
ParentGroupID
The Project Tree group in which the line of sight object is created. If it is set to an empty string, the object is created under the root. You can obtain the GroupID by one of the following methods:
· Create the group using IProjectTree80.CreateGroup.
· Find the group, if you know the name, using IProjectTree80.FindItem.
· Traverse the Tree using IProjectTree80 methods such as GetNextItem, until you come to the desired GroupID.
Description
The name of the line of sight object as it appears in the Project Tree. If an empty string is passed into this parameter, TerraExplorer assigns it a unique name.
Return Value
pLineOfSight
An ILineOfSight80 representing the line of sight visual marker created.
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list, as well as the following values:
|
TE_E_INFOTREE_PARENTNOTGROUP |
The group ID entered does not represent a valid group in the Project Tree. |
|
TE_E_INFOTREE_ITEMNOTGROUP |
The item entered is not a group and therefore cannot be used as a group. |
|
TE_E_INFOTREE_CANTUSEROOT |
Cannot use Tree root for this operation |
|
TE_E_INFOTREE_ITEMISGROUP |
Item ID is a group so an object cannot be retrieved. |
CreateSlopeMap
Creates a slope map on the terrain that can show degree (steepness) and/or aspect (direction). The terrain is colored according to degree of slope, and arrows display the direction of the slope. The color map and arrows can be applied to a specified rectangular area or to the entire terrain using the CoverageArea property of the resulting ISlopeMap80 object.
|
JavaScript |
|
|
|
|
CreateSlopeMap( UpperLeftX, UpperLeftY, LowerRightX, LowerRightY, DisplayStyle, PaletteID, GroupID, Description) |
|||
|
C# |
|
|
|
|
ISlopeMap80 CreateSlopeMap( double UpperLeftX, double UpperLeftY, double LowerRightX, double LowerRightY, SlopeDisplayStyle DisplayStyle = SlopeDisplayStyle.SDS_SLOPE_STYLE_COLORS, string PaletteID = "", string GroupID = "", string Description = "") |
|||
|
C++ |
|
|
|
|
HRESULT CreateSlopeMap( double UpperLeftX, double UpperLeftY, double LowerRightX, double LowerRightY, SlopeDisplayStyle DisplayStyle, BSTR PaletteID, BSTR GroupID, BSTR Description, ISlopeMap80** pISlopeMap80) |
|||
Parameters
UpperLeftX
The West-East coordinate of the slope map’s upper left corner in the project’s coordinate system units.
UpperLeftY
The North-South coordinate of the slope map’s upper left corner in the project’s coordinate system units.
LowerRightX
The West-East coordinate of the slope map’s lower right corner in the project’s coordinate system units.
LowerRightY
The North-South coordinate of the slope map’s lower right corner in the project’s coordinate system units.
DisplayStyle
An enum that determines how the slope map is displayed. The following are the possible values:
· SDS_SLOPE_STYLE_DEFAULT = -1
Default
· SDS_SLOPE_STYLE_DIRECTION = 0
Display arrows on the terrain indicating the direction of the slope.
· SDS_SLOPE_STYLE_COLORS = 1
Displays palette colors on the terrain according to degree of slope.
· SDS_SLOPE_STYLE_DIRECTION_AND_COLORS = 2
Display both slope colors and arrows indicating slope direction.
PaletteID
The GUID for the palette. GUIDs are listed in the palette XMLs found in the Pseudo directory, which is located under the [TerraExplorer installation]\Lang\1033 folder and under %APPDATA%\Skyline\TerraExplorer.
Note: 1033 is the English language directory. If you are running TerraExplorer in a different language, the Pseudo folder will be located under your language directory.
This parameter is applied only when the DisplayStyle property is set to CDS_SLOPE_STYLE_COLORS or CDS_SLOPE_STYLE_DIRECTION_AND_COLORS.
GroupID
The Project Tree group in which the slope map object is created. If it is set to an empty string, the object is created under the root. You can obtain the GroupID by one of the following methods:
· Create the group using IProjectTree80.CreateGroup.
· Find the group, if you know the name, using IProjectTree80.FindItem.
· Traverse the Tree using IProjectTree80 methods such as GetNextItem, until you come to the desired GroupID.
Description
The name of the slope map object as it appears in the Project Tree. If an empty string is passed into this parameter, TerraExplorer assigns it a unique name.
Return Value
pISlopeMap80
An ISlopeMap80 representing the newly created slope map object.
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list, as well as the following values:
|
TE_E_INFOTREE_PARENTNOTGROUP |
The group ID entered does not represent a valid group in the Project Tree. |
|
TE_E_INFOTREE_ITEMNOTGROUP |
The item entered is not a group and therefore cannot be used as a group. |
|
TE_E_INFOTREE_CANTUSEROOT |
Cannot use Tree root for this operation |
|
TE_E_INFOTREE_ITEMISGROUP |
Item ID is a group so an object cannot be retrieved. |
CreateThreatDome
Obsolete. Use ICommand80.Execute (setting the CommandID parameter to 1149 and the parameters parameter to 33) to create the new threat dome.
CreateViewshed
Creates a graphical representation of all the visible areas of the terrain within a field of view, from a given viewing point.
|
JavaScript |
|
|
CreateViewshed( ViewerPosition, FieldOfView, SampleInterval, RaySpacing, TargetHeightAboveGround, TimeStart, TimeEnd, ParentGroupID, Description) |
|
|
C# |
|
|
string CreateViewshed( IPosition80 ViewerPosition, double FieldOfView, double SampleInterval, double RaySpacing, double TargetHeightAboveGround, object TimeStart, object TimeEnd, string ParentGroupID = "", string Description = "") |
|
|
C++ |
|
|
HRESULT CreateViewshed( IPosition80 * ViewerPosition, double FieldOfView, double SampleInterval, double RaySpacing, double TargetHeightAboveGround, VARIANT TimeStart, VARIANT TimeEnd, BSTR ParentGroupID, BSTR Description, BSTR * ViewshedGroupID) |
|
Parameters
ViewerPosition
An IPosition80 representing the viewing point position, defined by its coordinates in the 3D World.
FieldOfView
The angular extent of the 3D World that can be seen. The default is set to 53 degrees.
SampleInterval
The distance between terrain samples for the measurement along each ray. A smaller sample size is more accurate but slower to calculate.
RaySpacing
The space in degrees between each ray that TerraExplorer samples. TerraExplorer samples several rays (lines of sight) in the area sector. The smaller the ray spacing, the more accurate the measurement, but the longer it takes to calculate.
TargetHeightAboveGround
The target height.
TimeStart
The start time for the visibility of the Viewshed Analysis group of objects in the 3D Window. See “Time” for information on valid formats for this parameter.
TimeEnd
The end time for the visibility of the Viewshed Analysis group of objects in the 3D Window. See “Time” for information on valid formats for this parameter.
ParentGroupID
The Project Tree group in which the model is created. If it is set to an empty string, the object is created under the root. You can obtain the GroupID by one of the following methods:
· Create the group using IProjectTree80.CreateGroup.
· Find the group, if you know the name, using IProjectTree80.FindItem.
· Traverse the Tree using IProjectTree80 methods such as GetNextItem, until you come to the desired GroupID.
Description
The name of the viewshed object as it appears in the Project Tree. If an empty string is passed into this parameter, TerraExplorer assigns it a unique name.
Return Value
ViewshedGroupID
The ID of the viewshed object.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
CreateViewshedOnRoute
Creates a graphical representation of all the visible areas of the terrain, within a field of view, from a given viewing point. The user can define viewer height and radius of viewshed analysis. The calculated route viewshed can be displayed as:
§ Individual viewshed results for each selected point along the route
§ A single composite viewshed showing visible area from any of the route’s waypoints
§ A series of individual viewshed results that display according to a set timespan
|
JavaScript |
|
|
|
|
CreateViewshedOnRoute( Route, AnalysisType, ViewerHeight, Distance, SampleInterval, RaySpacing, DistanceBetweenWaypoints, TimeStart, TimeEnd, ParentGroupID, Description) |
|||
|
C# |
|
|
|
|
string CreateViewshedOnRoute( ILineString Route, MultipleViewshedAnalysisType AnalysisType, double ViewerHeight, double Distance, double SampleInterval, double RaySpacing, double DistanceBetweenWaypoints, object TimeStart, object TimeEnd, string ParentGroupID = "", string Description = "") |
|||
|
C++ |
|
|
|
|
HRESULT CreateViewshedOnRoute( ILineString* Route, MultipleViewshedAnalysisType AnalysisType, double ViewerHeight, double Distance, double SampleInterval, double RaySpacing, double DistanceBetweenWaypoints, VARIANT TimeStart, VARIANT TimeEnd, BSTR ParentGroupID, BSTR Description, BSTR *ViewshedGroupID) |
|||
Parameters
Route
An ILineString object representing the geometry that defines the route.
AnalysisType
An enum that determines the Viewshed analysis type. The following are the possible values:
· MVT_NOT_VALID = -1
Viewshed is invalid.
· MVT_VIEWSHED_ON_ROUTE = 0
Displays the viewshed as individual viewshed results for each waypoint along the route.
· MVT_TIMESPAN_VIEWSHED_ON_ROUTE = 1
Displays the viewshed as a series of individual viewshed results that display according to a set timespan.
· MVT_CUMULATIVE_VIEWSHED_ON_ROUTE = 2
Displays the viewshed as a single composite viewshed showing visible area from any of the route’s waypoints.
ViewerHeight
The height of the viewer waypoints on the route.
Distance
The radius of the viewshed analysis from each of the route’s waypoints.
SampleInterval
The distance between terrain samples for the measurement along each ray. A smaller sample size is more accurate but slower to calculate.
RaySpacing
The space in degrees between each ray that TerraExplorer samples. TerraExplorer samples several rays (lines of sight) in the area sector. The smaller the ray spacing, the more accurate the measurement, but the longer it takes to calculate.
DistanceBetweenWaypoints
The distance between viewsheds along the route.
TimeStart
The start time assigned to the Viewshed on Route results. See “Time” for information on valid formats for this parameter.
TimeEnd
The end time assigned to the Viewshed on Route results. See “Time” for information on valid formats for this parameter.
ParentGroupID
The Project Tree group in which the model is created. If it is set to an empty string, the object is created under the root. You can obtain the GroupID by one of the following methods:
· Create the group using IProjectTree80.CreateGroup.
· Find the group, if you know the name, using IProjectTree80.FindItem.
· Traverse the Tree using IProjectTree80 methods such as GetNextItem, until you come to the desired GroupID.
Description
The name of the viewshed object as it appears in the Project Tree. If an empty string is passed into this parameter, TerraExplorer assigns it a unique name.
Return Value
ViewshedGroupID
The ID of the viewshed object.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
EndVisibilityQuery
This method frees resources for a call from either StartShadowVisibilityQuery or StartViewshedVisibilityQuery.
|
JavaScript |
|
|
|
|
EndVisibilityQuery() |
|||
|
C# |
|
|
|
|
void EndVisibilityQuery() |
|||
|
C++ |
|
|
|
|
HRESULT EndVisibilityQuery() |
|||
HideCompareBox
Hides the compare box created by ShowCompareBox.
|
JavaScript |
|
|
|
|
HideCompareBox() |
|||
|
C# |
|
|
|
|
void HideCompareBox () |
|||
|
C++ |
|
|
|
|
HRESULT HideCompareBox () |
|||
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list.
HideCrossSectionBox
Hides the cross section box created by ShowCrossSectionBox.
|
JavaScript |
|
|
|
|
HideCrossSectionBox() |
|||
|
C# |
|
|
|
|
void HideCrossSectionBox() |
|||
|
C++ |
|
|
|
|
HRESULT HideCrossSectionBox() |
|||
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list.
MeasureTerrainArea
Measures the area of the horizontal projection (2D measurement) of a defined region, even if some or all of the defined region encompasses mountainous terrain.
|
JavaScript |
|
|
|
|
MeasureTerrainArea( pIGeometry) |
|||
|
C# |
|
|
|
|
double MeasureTerrainArea( IGeometry pIGeometry) |
|||
|
C++ |
|
|
|
|
HRESULT MeasureTerrainArea( IGeometry* pIGeometry, double* pVal) |
|||
Parameters
pIGeometry
An IGeometry representing the geometric properties of the defined region.
Return Value
pVal
The resulting value of the terrain area measurement.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
MeasureTerrainGroundDistance
Measures the distance along a line path taking into account the terrain contour.
|
JavaScript |
|
|
|
|
MeasureTerrainGroundDistance ( pIGeometry, sampleInterval, IncludeGroundObjects) |
|||
|
C# |
|
|
|
|
double MeasureTerrainGroundDistance( IGeometry pIGeometry, double sampleInterval, bool IncludeGroundObjects = false) |
|||
|
C++ |
|
|
|
|
HRESULT MeasureTerrainGroundDistance ( IGeometry* pIGeometry, double SampleInterval, VARIANT_BOOL IncludeGroundObjects, double* pVal) |
|||
Parameters
pIGeometry
An IGeometry representing the geometric properties of the defined path. Only ILineString geometries are accepted.
sampleInterval
The distance between terrain sample points. Pass zero (0) for automatic interval.
IncludeGroundObjects
A Boolean that determines if ground objects are taken into account in calculating the distance measurement.
Return Value
pVal
The resulting value of the terrain ground distance measurement.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
MeasureTerrainPerimeter
Measures the perimeter of the horizontal projection (2D measurement). The region measured is the horizontal projection of the defined region, even if some or all of the defined region encompasses mountainous terrain.
|
JavaScript |
|
|
|
|
MeasureTerrainPerimeter( pIGeometry) |
|||
|
C# |
|
|
|
|
double MeasureTerrainPerimeter( IGeometry pIGeometry) |
|||
|
C++ |
|
|
|
|
HRESULT MeasureTerrainPerimeter( IGeometry* pIGeometry, double* pVal) |
|||
Parameters
pIGeometry
An IGeometry representing the geometric properties of the defined region.
Return Value
pVal
The resulting value of the terrain perimeter measurement.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
MeasureTerrainProfile
Measures the terrain elevation profile along a defined path, returning a polyline with the X and Y coordinates of each of the sampled points along the path, and the Z value that was sampled from the terrain for each of these points.
|
JavaScript |
|
|
|
|
MeasureTerrainProfile( KeyPoints, SampleInterval, IncludeGroundObjects) |
|||
|
C# |
|
|
|
|
IGeometry MeasureTerrainProfile ( IGeometry KeyPoints, double SampleInterval, bool IncludeGroundObjects = false) |
|||
|
C++ |
|
|
|
|
HRESULT MeasureTerrainProfile ( IGeometry* KeyPoints, double SampleInterval, VARIANT_BOOL IncludeGroundObjects, IGeometry** pProfile) |
|||
Parameters
KeyPoints
An IGeometry with the X and Y coordinates of the points marking the path to be analyzed.
SampleInterval
The distance between terrain sample points along the path. Pass zero (0) for automatic interval.
IncludeGroundObjects
A Boolean that determines if ground objects are taken into account in calculating the terrain profile.
Return Value
IGeometry
An ILineString with the X and Y coordinates of each of the sampled points along the path and the Z value that was sampled from the terrain for each of these points.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
MeasureTerrainSurface
Measures the surface area (3D measurement) of the defined region. The measurement takes into account terrain contours.
|
JavaScript |
|
|
|
|
MeasureTerrainSurface( pIGeometry, SampleInterval) |
|||
|
C# |
|
|
|
|
double MeasureTerrainSurface( IGeometry pIGeometry, double SampleInterval) |
|||
|
C++ |
|
|
|
|
HRESULT MeasureTerrainSurface( IGeometry* pIGeometry, double SampleInterval, double* pVal) |
|||
Parameters
pIGeometry
An IGeometry representing the geometric properties of the defined region.
SampleInterval
The distance between terrain sample points.
Return Value
pVal
The resulting value of the surface area measurement.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
MeasureTerrainSurfacePerimeter
Measures the perimeter of the surface of the defined region. The perimeter measured takes into account terrain contours.
|
JavaScript |
|
|
|
|
MeasureTerrainSurfacePerimeter( pIGeometry, SampleInterval) |
|||
|
C# |
|
|
|
|
double MeasureTerrainSurfacePerimeter( IGeometry pIGeometry, double SampleInterval) |
|||
|
C++ |
|
|
|
|
HRESULT MeasureTerrainSurfacePerimeter( IGeometry* pIGeometry, double SampleInterval, double* pVal) |
|||
Parameters
pIGeometry
An IGeometry representing the geometric properties of the defined region.
SampleInterval
The distance between terrain sample points.
Return Value
pVal
The resulting value of the perimeter of the surface of the defined region.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
QueryElevationBuffer
This method returns an array of elevation values for a designated area of the terrain. The query includes all ground objects, modify terrain objects, 3DML, etc. that are currently loaded on the terrain. If a layer is being streamed, this QueryElevationBuffer only returns elevation values for features that were already streamed at the time this method is called.
The designated area’s coordinates and coordinate system units should be passed in the coordinate system of the terrain and they are not translated by ICoordServices.SourceCoordinateSystem like other places in the API. See ITerrain80.CoordinateSystem for information.
This method executes synchronously, meaning it returns after the query is executed. If you want to execute asynchronously, use QueryElevationBufferAsync instead.
Note: Make sure the terrain opacity is set to 100% (ITerrain.Opacity = 1) before calling this method.
|
JavaScript |
|
|
|
|
QueryElevationBuffer ( UpperLeftX, UpperLeftY, ResX, ResY, DimensionX, DimensionY) |
|||
|
C# |
|
|
|
|
dynamic QueryElevationBuffer ( double UpperLeftX, double UpperLeftY, double ResX, double ResY, int DimensionX, int DimensionY) |
|||
|
C++ |
|
|
|
|
HRESULT QueryElevationBuffer ( double UpperLeftX, double UpperLeftY, double ResX, double ResY, long DimensionX, long DimensionY, VARIANT* pVal) |
|||
Parameters
UpperLeftX
The West-East coordinate of the elevation layer’s upper left corner in the terrain coordinate system.
UpperLeftY
The North-South coordinate of the elevation layer’s upper left corner in the terrain coordinate system.
ResX
The X cell resolution in the terrain coordinate system units.
ResY
The Y cell resolution in the terrain coordinate system units.
DimensionX
The width, in pixels, of the raster array. This value can range from 512-2048.
DimensionY
The height, in pixels, of the raster array. This value can range from 512-2048.
Return Value
pVal
SafeArray of float values representing the elevation values in the designated area. The values are stored in the array in typewriter order, beginning with the UpperLeftX, UpperLeftY coordinate.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
QueryElevationBufferAsync
This method returns an array of elevation values for a designated area of the terrain. The query includes all ground objects, modify terrain objects, 3DML, etc. that are currently loaded on the terrain. If a layer is being streamed, this QueryElevationBuffer only returns elevation values for features that were already streamed at the time this method is called.
The designated area’s coordinates and coordinate system units should be passed in the coordinate system of the terrain and they are not translated by ICoordServices.SourceCoordinateSystem like other places in the API. See ITerrain80.CoordinateSystem for information.
QueryElevationBufferAsync executes asynchronously, immediately returning an ITerraExplorerAsync80, thereby ensuring that control is promptly handed back to the calling function. The ITerraExplorerAsync80 object provides a callback-based mechanism similar to the JavaScript promise and the C# Task that offers the following functionality:
§ Allows for handling the various stages of the asynchronous operation, from tracking progress to managing rejection/error, and finally resolving the operation (using OnProgress, OnReject, and OnResolve respectively).
§ Upon resolution of the query, enables the passing of a SafeArray of float values representing the elevation values in the designated area, to the OnResolve callback.
If you want to execute synchronously, use QueryElevationBuffer instead.
Note: Make sure the terrain opacity is set to 100% (ITerrain.Opacity = 1) before calling this method.
|
JavaScript |
|
|
|
|
QueryElevationBufferAsync ( UpperLeftX, UpperLeftY, ResX, ResY, DimensionX, DimensionY) |
|||
|
C# |
|
|
|
|
ITerraExplorerAsync80 QueryElevationBufferAsync ( double UpperLeftX, double UpperLeftY, double ResX, double ResY, int DimensionX, int DimensionY) |
|||
|
C++ |
|
|
|
|
HRESULT QueryElevationBufferAsync ( double UpperLeftX, double UpperLeftY, double ResX, double ResY, long DimensionX, long DimensionY, ITerraExplorerAsync80* pVal) |
|||
Parameters
UpperLeftX
The West-East coordinate of the elevation layer’s upper left corner in the terrain coordinate system.
UpperLeftY
The North-South coordinate of the elevation layer’s upper left corner in the terrain coordinate system.
ResX
The X cell resolution in the terrain coordinate system units.
ResY
The Y cell resolution in the terrain coordinate system units.
DimensionX
The width, in pixels, of the raster array. This value can range from 512-2048.
DimensionY
The height, in pixels, of the raster array. This value can range from 512-2048.
Return Value
pVal
An ITerraExplorerAsync80 object, which provides a callback-based mechanism similar to the JavaScript promise and the C# Task that offers the following functionality:
· Allows for handling the various stages of the asynchronous operation, from tracking progress to managing rejection/error, and finally resolving the operation (using OnProgress, OnReject, and OnResolve respectively).
· Upon resolution of the query, enables the passing of a SafeArray of float values representing the elevation values in the designated area, to the OnResolve callback.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
QueryPointVisibility
This method executes a visibility query (either StartShadowVisibilityQuery or StartViewshedVisibilityQuery) based on the parameters set by the last StartXXVisibilityQuery call. Multiple calls to QueryPointVisibility can be made. When the queries are finished, EndVisibilityQuery should be called to free system resources.
|
JavaScript |
|
|
|
|
QueryPointVisibility( QueryPosition) |
|||
|
C# |
|
|
|
|
double QueryPointVisibility( IPosition80 QueryPosition) |
|||
|
C++ |
|
|
|
|
HRESULT QueryPointVisibility( IPosition80* QueryPosition, double* pVal) |
|||
Parameters
QueryPosition
An IPosition80representing the position for which the query is being performed.
Return Value
pVal
The value returned by the visibility query:
· 1 – visible
· 0 – not visible
· -1 – QueryPosition is outside of the region defined for the analysis. This area is defined in the StartShadowVisibilityQuery and StartViewshedVisibilityQuery.
· -2 – Error
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list, as well as the following value:
§ TE_E_OUT_OF_RANGE - Point is not in the shadow/viewshed area
QueryVisibilityDistance
Based on the parameters set by the last StartXXVisibilityQuery call (either StartShadowVisibilityQuery or StartViewshedVisibilityQuery), this method gets the point along the path from the origin of the shadow (QuerySperePosition) or viewshed source where the visibility or shadow is blocked by the terrain or a ground object.
|
JavaScript |
|
|
|
|
QueryVisibilityDistance( QueryPosition) |
|||
|
C# |
|
|
|
|
double QueryVisibilityDistance ( IPosition80 QueryPosition) |
|||
|
C++ |
|
|
|
|
HRESULT QueryVisibilityDistance ( IPosition80* QueryPosition, double* pVal) |
|||
Parameters
QueryPosition
An IPosition80representing the position of the endpoint of the path from the origin of the shadow (QuerySperePosition) or viewshed source that is being queried for the presence of a terrain or ground object.
Return Value
pVal
The distance to the point along the path from the origin of the shadow (QuerySperePosition) or viewshed source where the visibility or shadow is blocked by the terrain or a ground object.
-1 is returned if the query position is outside the range of the viewshed or shadow analysis. This range is defined in the StartShadowVisibilityQuery and StartViewshedVisibilityQuery.
Note: The distance is returned whether or not the visibility was blocked by a ground object or terrain. Use QueryPointVisibility to determine whether visibility was blocked.
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list.
SetCompareGroup
This method enables you to compare two versions of the 3D View, each of which is composed of a different group of objects, by dynamically hiding one of the groups inside or outside of a box area defined by the ShowCompareBox method.
Call this method for each object you want to assign to either of the groups (CG_Group_1/ CG_Group_2). You can then call ShowCompareBox to define a comparison box and control which of the groups is visible inside the box, and which outside, e.g. to allow dynamically swiping between the two versions. See “ShowCompareBox” for more information
This method is similar to the Swipe 3D Mesh Layers tool available from the TerraExplorer application. See "Swipe 3D Mesh Layers" in the TerraExplorer User Guide for more information.
|
JavaScript |
|
|
|
|
SetCompareGroup ( ID, Group) |
|||
|
C# |
|
|
|
|
void SetCompareGroup ( String* ID, CompareGroup Group) |
|||
|
C++ |
|
|
|
|
HRESULT SetCompareGroup ( BSTR* ID, CompareGroup Group) |
|||
Parameters
ID
The ITerraExplorerObject80.ID of the object to be included in the group.
Group
An enum representing the group that the ID object should be included in. It can have any of the following values:
· CG_ALL_OBJECTS = 0
Include the object with all objects that were not assigned a group. All these objects will be displayed in both groups.
· CG_GROUP_1 = 1
Include the object only in group 1.
· CG_GROUP_2 = 2
Include the object only in group 2.
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list.
ShowCompareBox
This method enables you to compare two versions of the 3D View, each of which is composed of a different group of objects, by dynamically hiding one of the groups inside or outside of a box area.
After calling SetCompareGroup for each object you want to assign to either of the groups (CG_Group_1/ CG_Group_2), you can then call ShowCompareBox to define a comparison box, and control which of the groups is visible inside the box, and which outside. This can be used, for example, to allow dynamically swiping between the two versions. See “SetCompareGroup” for more information
Within the frame of the box, you see objects from one group, while outside the box you see objects from the other group. Any object that is not assigned to either group is displayed both inside and outside of the box. The show compare box can be hidden using HideCompareBox
|
JavaScript |
|
|
|
|
ShowCompareBox ( Box, ShowIn, Color) |
|||
|
C# |
|
|
|
|
void ShowCompareBox ( ILineString* Box, bool ShowIn, object Color) |
|||
|
C++ |
|
|
|
|
HRESULT ShowCompareBox ( ILineString* Box, VARIANT_BOOL ShowIn, VARIANT Color) |
|||
Parameters
Box
|

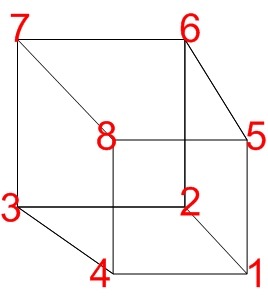

A linestring geometry with eight points, that defines the compare box’s corners. The box points should already be rotated in space (there is no yaw/pitch/roll). Points 1-4 define the base of the cross section box, while points 5-8 define the top of the box, all in clockwise order. |
|
ShowIn
A Boolean that determines whether the objects assigned to Group_1 using SetCompareGroup are shown inside or outside the box. When set to TRUE, TerraExplorer shows Group_1 from SetCompareGroup inside the box and Group_2 from SetCompareGroup outside the box, and when set to FALSE, TerraExplorer shows the reverse.
Color
Color of the compare box.
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list.
ShowCrossSectionBox
Shows a cross section box that exposes obscured sections of the 3D View. The cross section box can be hidden using HideCrossSectionBox. This method is similar to the Cross Section tool available from the TerraExplorer application. See "Cross Section Tool" in the TerraExplorer User Guide for more information.
|
JavaScript |
|
|
|
|
ShowCrossSectionBox ( Box, ShowIn) |
|||
|
C# |
|
|
|
|
void ShowCrossSectionBox ( ILineString* Box, bool ShowIn, object Color) |
|||
|
C++ |
|
|
|
|
HRESULT ShowCrossSectionBox ( ILineString* Box, VARIANT_BOOL ShowIn, VARIANT Color) |
|||
Parameters
Box
|
A linestring geometry with eight points, that defines the cross section box’s corners. The box points should already be rotated in space (there is no yaw/pitch/roll). Points 1-4 define the base of the cross section box, while points 5-8 define the top of the box, all in clockwise order. |
|
ShowIn
A Boolean that determines whether to show what’s inside or outside the box. When set to TRUE, TerraExplorer shows what is inside and hides what is outside, and when set to FALSE, TerraExplorer shows what’s outside the box and hides what is inside.
Color
Color of the cross section box.
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list.
StartShadowVisibilityQuery
Initializes a shadow visibility query for a selected position and shadow effect. After this initialization, subsequent calls can be made to QueryPointVisibility to calculate shadow visibility or to QueryVisibilityDistance to return the point where the shadow is blocked. The query can be based on the shadow effect of selected objects (selection Shadow) or of all the project’s objects (global shadow). Shadows are displayed using the ICommand80.Execute method (set the CommandID parameter to 2118 for a global shadow and to 2119 for a selection shadow).
Note: The selection of objects for a selection shadow can only be performed through the user interface since it is not currently supported by the API.
|
JavaScript |
|
|
|
|
StartShadowVisibilityQuery( QuerySpherePosition, QuerySphereRadius, Type) |
|||
|
C# |
|
|
|
|
void StartShadowVisibilityQuery( IPosition80 QuerySpherePosition, double QuerySphereRadius, ShadowType Type) |
|||
|
C++ |
|
|
|
|
HRESULT StartShadowVisibilityQuery( IPosition80* QuerySpherePosition, double QuerySphereRadius, ShadowType Type) |
|||
Parameters
QuerySperePosition
The center point of the sphere that defines the region in which the shadow analysis is performed.
QuerySphereRadius
The radius of the sphere that defines the region in which the shadow analysis is performed.
Type
An enum that defines what shadow effect should be considered in the query. The following are the possible values:
· STP_NONE = 0
No shadow
· STP_GLOBAL = 1
Global shadow cast by all of the project’s objects
· STP_SELECTION = 2
Shadow effect of selected objects
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list.
StartViewshedVisibilityQuery
Initializes a viewshed visibility query for a specific viewshed. After this initialization, subsequent calls can be made to QueryPointVisibility to calculate the visibility of a selected position on a 3D viewshed (passed in this method’s ViewshedID parameter) from the observer viewpoint of the 3D viewshed or to QueryVisibilityDistance to get the point where the view is blocked.
|
JavaScript |
|
|
|
|
StartViewshedVisibilityQuery( ViewshedID, Quality) |
|||
|
C# |
|
|
|
|
void StartViewshedVisibilityQuery( string ViewshedID, ViewshedQuality Quality = ViewshedQuality.VSQ_QUALITY_HIGH) |
|||
|
C++ |
|
|
HRESULT StartViewshedVisibilityQuery( BSTR ViewshedID, ViewshedQuality Quality) |
|
Parameters
ViewshedID
The ID of the required I3DViewshed80 object that defines the viewshed on which the analysis is being performed.
Quality
An enum that determines the accuracy level of the viewshed query. The following are the possible values:
· VSQ_QUALITY_LOW = 0
· VSQ_QUALITY_MEDIUM = 1
· VSQ_QUALITY_HIGH = 2
Exceptions
HRESULT can return any of the values listed in the HRESULT Return Values list.
