IPresentation80
This interface provides methods for creating dynamic presentations that include recorded fly to’s, the display of the terrain, and objects and features on the terrain at different times and dates, and the tracking of dynamic objects. The interface’s properties also expose control over the playing back of a presentation, including loop mode and speed factor.
Presentations are created from items, which can be either actions or steps. Actions are the specific activities that the presentation tool is to perform when the presentation is played, such as 'Record Route' or 'Show Object'. While steps are like "chapter headings" that group together related actions and provide increased flexibility for displaying a presentation by enabling you to quickly jump from one step to another in the presentation.

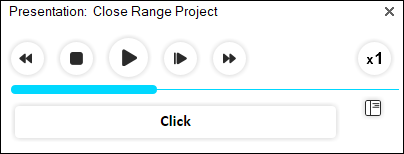

Note: To open the Presentation Editor, use the following:
SGWorld.Application.Containers.Item(editorIndex).URL
Where URL = the URL of the presentation editor (" .\Tools\Presentation\PresentationEditor.html") i
|
|
Properties |
|
|
|
Gets the ID of the currently playing action. |
|
|
|
Gets the ID of the presentation object. (Inherited from ITerraExplorerObject80) |
|
|
|
Gets and sets a Boolean that determines whether a presentation should automatically restart when the end of the presentation is reached. |
|
|
|
Gets an enum that identifies the type of the object. (Inherited from ITerraExplorerObject80) |
|
|
|
Gets a JSON describing the currently playing presentation. |
|
|
|
Gets and sets a JSON that describes the presentation. |
|
|
|
Gets the presentation JSON schema that defines the required format and structure of a presentation JSON. |
|
|
|
Gets and sets a Boolean that determines whether the object is saved in the Fly file. (Inherited from ITerraExplorerObject80) |
|
|
|
Gets and sets the section of the PresentationJSON that describes the presentation settings. |
|
|
|
Gets and sets the speed factor of the presentation. |
|
|
|
Gets the status of the presentation. |
|
|
|
An ITreeItem80 representing details about the representation of the object in the Project Tree. |
|
|
|
Methods |
|
|
|
Copies and pastes an item in a presentation. |
|
|
|
Creates a presentation action. |
|
|
|
Creates a movie in AVI or WMV format from a FLY project presentation. |
|
|
|
Creates a presentation step. |
|
|
|
Deletes an item in a presentation. |
|
|
|
Gets an array of text strings assigned to each object global namespace. (Inherited from ITerraExplorerObject80) |
|
|
|
Returns a presentation item based on its ID. |
|
|
|
Returns the position of a specific item in the list of presentation items using its ID. |
|
|
|
GetParam |
Reserved. Currently not used. (Inherited from ITerraExplorerObject80) |
|
|
Moves a presentation item to a new position in the presentation’s list of items. |
|
|
|
Fast forwards the presentation and plays from the next step. |
|
|
|
Pauses a presentation. |
|
|
|
Plays a presentation from the beginning. |
|
|
|
Plays from a specified presentation step. |
|
|
|
Rewinds the presentation and plays from the previous step. |
|
|
|
Sets an array of text strings assigned to each object global namespace. (Inherited from ITerraExplorerObject80) |
|
|
|
SetParam |
Reserved. Currently not used. (Inherited from ITerraExplorerObject80) |
|
|
Shows the flight path of the presentation. |
|
|
|
Skips to the next action in the presentation. |
|
|
|
Stops the playback of the presentation. |
|
|
|
Stops the movie creation. |
CurrentlyPlayingActionId
Gets the ID of the currently playing action.
|
JavaScript |
|
|
CurrentlyPlayingActionId |
|
|
C# |
|
|
string CurrentlyPlayingActionId { get; } |
|
|
C++ |
|
|
HRESULT CurrentlyPlayingActionId ([out,retval] BSTR pVal) |
|
LoopMode
Gets and sets a Boolean that determines whether a presentation should automatically restart when the end of the presentation is reached.
|
JavaScript |
|
|
LoopMode |
|
|
C# |
|
|
bool LoopMode { get; set; } |
|
|
C++ |
|
|
HRESULT LoopMode ([in] VARIANT_BOOL pVal) HRESULT LoopMode ([out,retval] VARIANT_BOOL pVal) |
|
PlayingPresentationJSON
This property is primarily used to return a JSON for a presentation that launches other presentations. The JSON returned includes all the steps from the primary presentation as well as from all secondary presentations that are steps within the primary presentation.
|
JavaScript |
|
|
PlayingPresentationJSON |
|
|
C# |
|
|
string PlayingPresentationJSON { get;} |
|
|
C++ |
|
|
HRESULT PlayingPresentationJSON ([out,retval] BSTR pVal) |
|
PresentationJSON
Gets and sets a JSON describing a presentation. When a presentation is created in the TerraExplorer user interface, this property can be used to retrieve a JSON that defines this presentation. See “Presentations” chapter in the TerraExplorer User Manual. When creating a presentation using the API, the JSON must be written according to the schema defined in PresentationJSONSchema.
This JSON must include a base presentation object. This object has five properties:
§ description (required) – Name of the presentation as displayed in the Project Tree
§ id – Presentation ID
§ settings – Presentation settings that determine whether presentation loops, how it advances between steps, and more. See “SettingsJSON” in this chapter for more information.
§ steps (required) – An array made up of PresentationStep objects, representing each presentation step and action.
§ movieSettings - Movie settings that determine frame size, frames per second, and overlay display.
Basic JSON Structure Example:
{
“presentation”: {
“description”:” Close Range Project”,
“id”: “0_24136”,
“settings”: {…
},
“steps”: [
]
“movieSettings”: [
]
}
}
JSON Example Showing Step:
{
"presentation": {
"description":" Close Range Project",
"id": "0_24136",
"settings": {
"loopPresentation": false,
"unattendedPlayMode": false,
"playSpeedFactor": 1.0
},
"steps": [
{
"description":"Step",
"actions": [
{
"description": "Hide CellTower Airmap",
"actionType": "Hide",
"options": {
"pathToGroup": "3D City Models\\Close-Range Projects\\CellTower Airmap"
}
]
“movieSettings”: [
]
}
}
|
JavaScript |
|
|
PresentationJSON |
|
|
C# |
|
|
string PresentationJSON { get; set; } |
|
|
C++ |
|
|
HRESULT PresentationJSON ([in] BSTR pVal) HRESULT PresentationJSON ([out,retval] BSTR pVal) |
|
PresentationJSONSchema
Gets the presentation JSON schema that defines the required format and structure of a presentation JSON.
{
"$schema": "http://json-schema.org/draft-07/schema#",
"$ref": "#/definitions/Presentation",
"definitions": {
"Presentation": {
"type": "object",
"required": [
"presentation"
],
"title": "Presentation",
"additionalProperties": false,
"properties": {
"presentation": {
"$ref": "#/definitions/PresentationClass"
},
"events": {
"type": "array",
"anyOf": [
{
"$ref": "#/definitions/eventPresentationStarted"
},
{
"$ref": "#/definitions/eventActionStarted"
},
{
"$ref": "#/definitions/eventActionFinished"
},
{
"$ref": "#/definitions/eventWaitProgress"
},
{
"$ref": "#/definitions/eventError"
},
{
"$ref": "#/definitions/eventStatusChanged"
}
]
}
}
},
"stepsArray": {
"type": "array",
"items": {
"$ref": "#/definitions/PresentationStep"
}
},
"actionsArray": {
"type": "array",
"items": {
"anyOf": [
{
"$ref": "#/definitions/ClickAction"
},
{
"$ref": "#/definitions/MenuAction"
},
{
"$ref": "#/definitions/DynamicObjectAction"
},
{
"$ref": "#/definitions/ShowAction"
},
{
"$ref": "#/definitions/HideAction"
},
{
"$ref": "#/definitions/FlyToAction"
},
{
"$ref": "#/definitions/CaptionAction"
},
{
"$ref": "#/definitions/WaitAction"
},
{
"$ref": "#/definitions/MessageAction"
},
{
"$ref": "#/definitions/UndergroundModeAction"
},
{
"$ref": "#/definitions/SetTimeAction"
},
{
"$ref": "#/definitions/PlayAnotherPresentationAction"
},
{
"$ref": "#/definitions/PlayTimeAnimationAction"
},
{
"$ref": "#/definitions/TimeSliderAction"
}
]
}
},
"PresentationClass": {
"type": "object",
"required": [
"description",
"steps"
],
"title": "PresentationClass",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"steps": {
"$ref": "#/definitions/stepsArray"
},
"settings": {
"type": "object",
"additionalProperties": false,
"properties": {
"loopPresentation": {
"type": "boolean",
"title": "Loop Presentation",
"default": false
},
"chainedflightModel": {
"type": "boolean",
"title": "Use Spline Play Algorithm",
"default": false
},
"unattendedPlayMode": {
"type": "boolean",
"title": "Auto-Play",
"default": false
},
"playSpeedFactor": {
"type": "number",
"minimum": 0.1,
"maximum": 8,
"title": "Play Speed Factor",
"default": 1
}
}
},
"movieSettings": {
"type": "object",
"additionalProperties": false,
"properties": {
"frameSize": {
"type": "string",
"enum": [
"Current Size",
"640x480 (NTSC Online)",
"768x576 (PAL Online)",
"720x480 (SD 480p)",
"1280x720 (HD 720p)",
"1920x1080 (HD 1080p)",
"2560X1440 (QHD 1440p)"
],
"title": "Frame Size"
},
"framesPerSec": {
"type": "number",
"minimum": 10,
"maximum": 60,
"title": "Frames per Second",
"default": 25
},
"hideOverlay": {
"type": "boolean",
"title": "Hide Screen Overlays",
"default": false
}
}
}
}
},
"PresentationStep": {
"type": "object",
"required": [
"actions"
],
"title": "Step",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Name"
},
"id": {
"type": "string",
"title": "ID"
},
"RequireClick": {
"type": "boolean",
"title": "Requires click",
"default": true
},
"bookmark": {
"description": "A Boolean that determines whether the step is a bookmark. The default value is False.",
"type": "boolean",
"default": false,
"title": "Bookmark"
},
"actions": {
"$ref": "#/definitions/actionsArray"
}
}
},
"ClickAction": {
"type": "object",
"required": [
"actionType"
],
"title": "Click",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"Click"
],
"title": "Action Type"
}
}
},
"MenuAction": {
"type": "object",
"required": [
"actionType"
],
"title": "Click menu item",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"MenuCommand"
],
"title": "Action Type"
},
"options": {
"type": "object",
"required": [
"teCommandId",
"checked"
],
"title": "Options",
"additionalProperties": false,
"properties": {
"teCommandId": {
"type": "integer",
"title": "Command ID"
},
"checked": {
"type": "boolean",
"title": "Display",
"default": true
}
}
}
}
},
"DynamicObjectAction": {
"type": "object",
"required": [
"actionType"
],
"title": "Dynamic Object",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"DynamicObject"
],
"title": "Action Type"
},
"options": {
"type": "object",
"required": [
"TeObjectId"
],
"title": "Options",
"additionalProperties": false,
"properties": {
"TeObjectId": {
"type": "string",
"title": "TerraExplorer Object ID"
},
"operation": {
"type": "string",
"enum": [
"Restart",
"Follow"
],
"title": "Operation"
},
"duration": {
"type": "number",
"title": "Follow time (Seconds)",
"default": 3
}
}
}
}
},
"ShowAction": {
"type": "object",
"required": [
"actionType"
],
"title": "Show Group/Object",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"Show"
],
"title": "Action Type"
},
"options": {
"type": "object",
"oneOf": [
{
"required": [
"TeObjectId"
]
},
{
"required": [
"pathToGroup"
]
}
],
"title": "Options",
"additionalProperties": false,
"properties": {
"TeObjectId": {
"type": "string",
"title": "TerraExplorer Object ID"
},
"pathToGroup": {
"type": "string",
"title": "Path to a Group"
}
}
}
}
},
"HideAction": {
"type": "object",
"required": [
"actionType"
],
"title": "Hide Group/Object",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"Hide"
],
"title": "Action Type"
},
"options": {
"type": "object",
"oneOf": [
{
"required": [
"TeObjectId"
]
},
{
"required": [
"pathToGroup"
]
}
],
"title": "Options",
"additionalProperties": false,
"properties": {
"TeObjectId": {
"type": "string",
"title": "TerraExplorer Object ID"
},
"pathToGroup": {
"type": "string",
"title": "Path to a Group"
}
}
}
}
},
"FlyToAction": {
"type": "object",
"required": [
"actionType",
"options"
],
"title": "Fly To",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"FlyTo"
],
"title": "Action Type"
},
"options": {
"type": "object",
"additionalProperties": false,
"properties": {
"poi": {
"type": "object",
"additionalProperties": false,
"properties": {
"x": {
"type": "number"
},
"y": {
"type": "number"
},
"altitude": {
"type": "number"
},
"viewerYaw": {
"type": "number"
},
"viewerPitch": {
"type": "number"
},
"distance": {
"type": "number"
},
"isRelative": {
"type": "boolean"
}
},
"required": [
"x",
"y",
"altitude",
"viewerYaw",
"viewerPitch",
"distance",
"isRelative"
]
},
"TeObjectId": {
"type": "string",
"title": "TerraExplorer Object ID"
},
"duration": {
"type": "number",
"title": "Flight time (Seconds)",
"default": 3
},
"activationAction": {
"type": "string",
"enum": [
"Fly To",
"Circle pattern",
"Oval pattern",
"Line pattern",
"Arc pattern",
"Jump To"
],
"title": "Activation Action"
},
"splineSpeedFunction": {
"type": "integer",
"title": "Spline Speed Easeing Function"
},
"splineTurnSpeedFunction": {
"type": "integer",
"title": "Spline Turn Speed Easeing Function"
}
}
}
}
},
"CaptionAction": {
"type": "object",
"required": [
"actionType",
"options"
],
"additionalProperties": false,
"title": "Caption",
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"Caption"
],
"title": "Action Type"
},
"options": {
"type": "object",
"required": [
"captionText"
],
"title": "Options",
"properties": {
"captionText": {
"type": "string",
"title": "Caption",
"default": "New caption"
},
"lifespan": {
"type": "string",
"enum": [
"Step",
"Time",
"Until replaced"
],
"title": "Lifespan"
},
"timeOutInterval": {
"type": "number",
"title": "Duration (Seconds)"
},
"RTL": {
"type": "boolean",
"title": "Use Right to Left"
}
}
}
}
},
"WaitAction": {
"type": "object",
"required": [
"actionType"
],
"title": "Wait",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"Wait"
],
"title": "Action Type"
},
"options": {
"type": "object",
"required": [],
"title": "Options",
"additionalProperties": false,
"properties": {
"duration": {
"type": "number",
"title": "Wait (Seconds)",
"minimum": 0.1,
"default": 5
}
}
}
}
},
"MessageAction": {
"type": "object",
"required": [
"actionType",
"description",
"options"
],
"title": "Message",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"Message"
],
"title": "Action Type"
},
"options": {
"type": "object",
"required": [
"TeObjectId"
],
"title": "Options",
"properties": {
"TeObjectId": {
"type": "string",
"title": "TerraExplorer Object ID"
}
}
}
}
},
"UndergroundModeAction": {
"type": "object",
"required": [
"actionType",
"options"
],
"title": "Underground Mode",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"UndergroundMode"
],
"title": "Action Type"
},
"options": {
"type": "object",
"required": [
"showUnderground"
],
"title": "options",
"additionalProperties": false,
"properties": {
"showUnderground": {
"type": "boolean",
"title": "Underground mode"
}
}
}
}
},
"RouteWaypoint": {
"type": "object",
"additionalProperties": false,
"properties": {
"description": {
"type": "string"
},
"x": {
"type": "number"
},
"y": {
"type": "number"
},
"altitude": {
"type": "number"
},
"yaw": {
"type": "number"
},
"pitch": {
"type": "number"
},
"dis": {
"type": "number"
},
"cameraYaw": {
"type": "number"
},
"cameraPitch": {
"type": "number"
},
"timeFromPrevWaypoint": {
"type": "number"
}
},
"required": [],
"title": "Route Waypoint"
},
"PlayRouteAction": {
"type": "object",
"additionalProperties": false,
"properties": {
"description": {
"type": "string"
},
"id": {
"type": "string"
},
"actionType": {
"type": "string",
"enum": [
"PlayRoute"
]
},
"options": {
"type": "object",
"additionalProperties": false,
"properties": {
"waypoints": {
"type": "array",
"minItems": 2,
"waypoints": {
"$ref": "#/definitions/RouteWaypoint"
}
}
}
}
},
"required": [
"actionType",
"options"
],
"title": "PlayRouteAction"
},
"SetTimeAction": {
"type": "object",
"required": [
"actionType",
"options"
],
"title": "Set Time",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"SetTime"
],
"title": "Action Type"
},
"options": {
"type": "object",
"required": [
"year",
"month",
"day",
"hour",
"minute",
"second"
],
"title": "Options",
"additionalProperties": false,
"properties": {
"year": {
"type": "integer",
"title": "Year"
},
"month": {
"type": "integer",
"title": "Month"
},
"day": {
"type": "integer",
"title": "Day"
},
"hour": {
"type": "integer",
"title": "Hour"
},
"minute": {
"type": "integer",
"title": "Minute"
},
"second": {
"type": "integer",
"title": "Second"
}
}
}
}
},
"PlayAnotherPresentationAction": {
"type": "object",
"required": [
"actionType",
"options"
],
"title": "Play Another Presentation",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"PlayAnotherPresentation"
],
"title": "Action Type"
},
"options": {
"type": "object",
"required": [
"TeObjectId"
],
"title": "Options",
"additionalProperties": false,
"properties": {
"TeObjectId": {
"type": "string",
"title": "TerraExplorer Presentation ID"
}
}
}
}
},
"PlayTimeAnimationAction": {
"type": "object",
"required": [
"actionType",
"options"
],
"title": "Play Time Animation",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"PlayTimeAnimation"
],
"title": "Action Type"
},
"options": {
"type": "object",
"required": [
"TeObjectId",
"Range"
],
"title": "Options",
"additionalProperties": false,
"properties": {
"Range": {
"type": "string",
"enum": [
"Project",
"Custom",
"Group"
],
"title": "Time Range"
},
"duration": {
"type": "number",
"title": "Duration (Seconds)",
"default": 3
},
"startyear": {
"type": "integer",
"title": "Start Year"
},
"startmonth": {
"type": "integer",
"title": "Start Month"
},
"startday": {
"type": "integer",
"title": "Start Day"
},
"starthour": {
"type": "integer",
"title": "Start Hour"
},
"startminute": {
"type": "integer",
"title": "Start Minute"
},
"startsecond": {
"type": "integer",
"title": "Start Second"
},
"endyear": {
"type": "integer",
"title": "end Year"
},
"endmonth": {
"type": "integer",
"title": "endMonth"
},
"endday": {
"type": "integer",
"title": "End Day"
},
"endhour": {
"type": "integer",
"title": "End Hour"
},
"endminute": {
"type": "integer",
"title": "End Minute"
},
"endsecond": {
"type": "integer",
"title": "End Second"
},
"pathToGroup": {
"type": "string",
"title": "Path to a Group"
}
}
}
}
},
"TimeSliderAction": {
"type": "object",
"required": [
"actionType",
"options"
],
"title": "Time Slider",
"additionalProperties": false,
"properties": {
"description": {
"type": "string",
"title": "Description"
},
"id": {
"type": "string",
"title": "ID"
},
"actionType": {
"type": "string",
"enum": [
"TimeSlider"
],
"title": "Action Type"
},
"options": {
"type": "object",
"required": [
"TeObjectId"
],
"title": "Options",
"additionalProperties": false,
"properties": {
"pathToGroup": {
"type": "string",
"title": "Path to a Group"
}
}
}
}
},
"eventPresentationStarted": {
"type": "object",
"properties": {
"eventName": {
"const": "Started"
},
"presentationId": {
"type": "string"
},
"flatPresentation": {
"type": "object",
"properties": {
"steps": {
"$ref": "#/definitions/PresentationStep"
}
}
},
"creatingMovie": {
"type": "boolean"
}
}
},
"eventActionStarted": {
"eventName": {
"const": "ActionStarting"
},
"itemId": {
"type": "string"
},
"presentationId": {
"type": "string"
}
},
"eventActionFinished": {
"eventName": {
"const": "ActionFinished"
},
"itemId": {
"type": "string"
},
"presentationId": {
"type": "string"
},
"progress": {
"type": "number",
"minimum": 0,
"maximum": 1
}
},
"eventWaitProgress": {
"type": "object",
"properties": {
"eventName": {
"const": "WaitProgress"
},
"itemId": {
"type": "string"
},
"presentationId": {
"type": "string"
},
"progress": {
"type": "number",
"minimum": 0,
"maximum": 1
},
"totalWaitTime": {
"type": "number"
}
}
},
"eventError": {
"type": "object",
"properties": {
"eventName": {
"const": "Error"
},
"message": {
"type": "string"
}
}
},
"eventEditorOpening": {
"type": "object",
"properties": {
"eventName": {
"const": "OpenEditor"
},
"presentationId": {
"type": "string"
}
}
},
"eventStatusChanged": {
"type": "object",
"properties": {
"eventName": {
"const": "StatusChanged"
},
"presentationId": {
"type": "string"
},
"oldStatus": {
"$ref": "#/definitions/presentationStatus"
},
"newStatus": {
"$ref": "#/definitions/presentationStatus"
}
}
},
"presentationStatus": {
"enum": [
"FastRewinding",
"PrevStepping",
"Playing",
"NextStepping",
"FastForwarding",
"Paused",
"Stopped"
]
}
}
}
|
JavaScript |
|
|
PresentationJSONSchema |
|
|
C# |
|
|
string PresentationJSONSchema { get; } |
|
|
C++ |
|
|
HRESULT PresentationJSONSchema ([out,retval] BSTR pVal) |
|
SettingsJSON
Gets and sets the section of the PresentationJSON that describes the presentation settings. The settings object has four properties:
§ loopPresentation – A Boolean that determines whether a presentation should automatically restart when the end of the presentation is reached.
§ unattendedPlayMode – A Boolean that determines whether the presentation advances between steps automatically as well as restarts presentation when the end is reached.
§ playSpeedFactor – Integer that determines the play speed factor of the presentation.
Example:
"settings": {
"loopPresentation": false,
"unattendedPlayMode": false,
"playSpeedFactor": 1.0
},
See “PresentationJSONSchema” in this chapter for more information.
|
JavaScript |
|
|
SettingsJSON |
|
|
C# |
|
|
string SettingsJSON { get; set; } |
|
|
C++ |
|
|
HRESULT SettingsJSON ([in] BSTR pVal) HRESULT SettingsJSON ([out,retval] BSTR pVal) |
|
SpeedFactor
Gets and sets the play speed factor of the presentation.
|
JavaScript |
|
|
SpeedFactor |
|
|
C# |
|
|
double SpeedFactor { get; set; } |
|
|
C++ |
|
|
HRESULT SpeedFactor([in] double pVal) HRESULT SpeedFactor([out,retval] double pVal) |
|
Status
Gets the status of the presentation. The following are the possible values:
§ PrevStepping – The presentation was rewound to play from the previous step.
§ Playing – The presentation is playing.
§ NextStepping - The presentation was fast forward to play from the next step.
§ Paused – Playback of the presentation was paused.
§ Stopped – Playback of the presentation was stopped.
|
JavaScript |
|
|
Status |
|
|
C# |
|
|
string Status { get; } |
|
|
C++ |
|
|
HRESULT Status ([out,retval] BSTR pVal) |
|
CopyItem
Copies and pastes an item in a presentation.
|
JavaScript |
|
|
CopyItem( ItemID, NewParentID, InsertBeforeID) |
|
|
C# |
|
|
void CopyItem ( string ItemID, string, NewParentID, string InsertBeforeID) |
|
|
C++ |
|
|
HRESULT CopyItem ( [in] BSTR ItemID, [in] BSTR NewParentID, [in] BSTR InsertBeforeID) |
|
Parameters
ItemID
The ID of the presentation item to copy.
NewParentID
The ID of the presentation step in which the copied itemis pasted.
InsertBeforeID
The ID of the presentation action before which the copied item should be pasted.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
CreateAction
Creates a presentation action. Presentations are created from a combination of actions and steps. Actions are the specific activities that the presentation tool is to perform when the presentation is played, such as 'Record Route' or 'Show Object'. While steps are like "chapter headings" that group together related actions and provide increased flexibility for displaying a presentation by enabling you to quickly jump from one step to another in the presentation.
|
JavaScript |
|
|
CreateAction( ActionData) |
|
|
C# |
|
|
IPresentationItem80 CreateAction ( string ActionData) |
|
|
C++ |
|
|
HRESULT CreateAction ( [in] BSTR ActionData, {out, retval] IPresentationItem80** pIPresentationItem80) |
|
Parameters
ActionData
The section of the PresentationJSON that describes the presentation action being created. For example:
{
"description": "Hide CellTower Airmap",
"actionType": "Hide",
"options": {
"pathToGroup": "3D City Models\\Close-Range Projects\\CellTower Airmap"
}
}
OR
{
"description": "Fly to: [-81.4987, 41.0084]",
"actionType": "FlyTo",
"options": {
"poi": {
"x": -81.498679,
"y": 41.008367,
"altitude": 302.502045,
"viewerYaw": 382.596884,
"viewerPitch": -32.975953,
"distance": 6809.840545,
"isRelative": false
}
}
}
See “PresentationJSONSchema” in this chapter for more information.
Return Value
pIPresentationItem80
An IPresentationItem80 representing the presentation action that was created.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
CreateMovie
Creates a movie in AVI or WMV format from a FLY project presentation. The recorded movie can be played back using any standard AVI or WMV Viewer. Size is recommended to be aligned to 2.
|
JavaScript |
|
|
CreateMovie( FrameSize, FramesPerSecond, HideOverlay) |
|
|
C# |
|
|
string CreateMovie( [in] int FrameSize, [in] int FramesPerSecond, [in] bool HideOverlay) |
|
|
C++ |
|
|
HRESULT CreateMovie( [in] long FrameSize, [in] long FramesPerSecond, [in] VARIANT_BOOL HideOverlay) |
|
Parameters
FrameSize
An integer that determines the size of each frame. The following are the possible values:
· 0 – 640x480 (NTSC Online)
· 1 – 768x576 (PAL Online)
· 2 – 720x480 (SD 480p)
· 3 – 1280x720 (HD 720p)
· 4 – 1920x1080 (HD1080p)
FramesPerSecond
The number of movie frames per second.
HideOverlay
A Boolean that determines whether HUD controls will be shown in the recorded movie. When set to FALSE, any HUD control that is visible during the creation of the movie will be shown in the movie as well. The presentation control will never be shown (even if HideScreenOverlays is set to FALSE).
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
CreateStep
Creates a presentation step. Presentations are created from a combination of actions and steps. Actions are the specific activities that the presentation tool is to perform when the presentation is played, such as 'Record Route' or 'Show Object'. While steps are like "chapter headings" that group together related actions and provide increased flexibility for displaying a presentation by enabling you to quickly jump from one step to another in the presentation.
|
JavaScript |
|
|
CreateStep( Description) |
|
|
C# |
|
|
IPresentationItem80 CreateStep ( string Description) |
|
|
C++ |
|
|
HRESULT CreateStep ( [in] BSTR Description, {out, retval] IPresentationItem80** pIPresentationItem80) |
|
Parameters
Description
A description (title) of the presentation step being created.
Return Value
pIPresentationItem80
An IPresentationItem80 representing the presentation step that was created.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
DeleteItem
Deletes an item in a presentation.
|
JavaScript |
|
|
DeleteItem( ItemID) |
|
|
C# |
|
|
void DeleteItem ( string ItemID) |
|
|
C++ |
|
|
HRESULT DeleteItem ( [in] BSTR ItemID) |
|
Parameters
ItemID
The ID of the presentation item to be deleted.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
GetItem
Returns an interface to the presentation item based on its ID. If this item and its ID were defined in a PresentationJSON, this ID should be passed. Otherwise the ID automatically generated by the system should be passed.
|
JavaScript |
|
|
GetItem ( ItemID) |
|
|
C# |
|
|
IPresentationItem80 GetItem ( string ItemID) |
|
|
C++ |
|
|
HRESULT GetItem ( [in] BSTR ItemID, [out, retval] IPresentationItem80** pIPresentationItem80) |
|
Parameters
ItemID
The ID of the presentation item requested. Returns a presentation item based on its ID. If this item and its ID were defined in a PresentationJSON, this ID is returned. Otherwise an ID automatically generated by the system is returned.
Return Value
pIPresentationItem80
An IPresentationItem80 representing the presentation item with the specified ID.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
GetItemPosition
Returns the position of a specific item in the list of presentation items using its ID.
|
JavaScript |
|
|
GetItemPosition( ItemID) |
|
|
C# |
|
|
IPosition80 GetItemPosition ( string ItemID) |
|
|
C++ |
|
|
HRESULT GetItemPosition ( [in] BSTR ItemID, {out, retval] IPosition80** pVal) |
|
Parameters
ItemID
The ID of the presentation item whose position you want to retrieve .
Return Value
pVal
An IPosition80 representing the position of the item in the presentation list.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
MoveItem
Moves a presentationitem to a new position in the presentation’s list of items.
|
JavaScript |
|
|
MoveItem( ItemID NewParentID InsertBeforeID) |
|
|
C# |
|
|
void MoveItem ( string ItemID, string, NewParentID, string InsertBeforeID) |
|
|
C++ |
|
|
HRESULT MoveItem ( [in] BSTR ItemID, [in] BSTR NewParentID, [in] BSTR InsertBeforeID) |
|
Parameters
ItemID
The ID of the presentation item to move.
NewParentID
The ID of the presentation step under which the itemis moved.
InsertBeforeID
The ID of the presentation action before which the moved item should be placed.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
NextStep
Fast forwards the presentation and plays from the next step.
|
JavaScript |
|
|
NextStep() |
|
|
C# |
|
|
void NextStep() |
|
|
C++ |
|
|
HRESULT NextStep() |
|
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
Pause
Pauses the playback of the presentation. When the presentation is resumed, it continues from the point at which it was paused.
|
JavaScript |
|
|
Pause() |
|
|
C# |
|
|
void Pause() |
|
|
C++ |
|
|
HRESULT Pause() |
|
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
Play
Plays a presentation from the beginning. If this method is called after Pause, the playing of the presentation is resumed from the step at which it was paused.
|
JavaScript |
|
|
Play() |
|
|
C# |
|
|
void Play() |
|
|
C++ |
|
|
HRESULT Play() |
|
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
PlayFromID
Plays from a specified presentation step.
|
JavaScript |
|
|
PlayFromID( PresentationItemID) |
|
|
C# |
|
|
void PlayFromID ( string PresentationItemID) |
|
|
C++ |
|
|
HRESULT PlayFromID ( [in] BSTR PresentationItemID) |
|
Parameters
PresentationItemID
The ID of the presentation step from which to start playing.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
PreviousStep
Rewinds the presentation and plays from the previous step.
|
JavaScript |
|
|
PreviousStep() |
|
|
C# |
|
|
void PreviousStep() |
|
|
C++ |
|
|
HRESULT PreviousStep() |
|
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
ShowPath
Shows the flight path of the presentation.
|
JavaScript |
|
|
ShowPath ( ItemID, Show, withAnimation) |
|
|
C# |
|
|
void ShowPath ( string ItemID, bool Show, bool withAnimation) |
|
|
C++ |
|
|
HRESULT ShowPath ( [in] BSTR ItemID, [in] VARIANT_BOOL Show, [in] VARIANT_BOOL withAnimation) |
|
Parameters
ItemID
The ID of the presentation item.
Show
A Boolean that determines whether the path is shown.
withAnimation
A Boolean that determines whether a small 3D camera that moves along the path is shown.
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
SkipAction
Skips the next action in the presentation.
|
JavaScript |
|
|
SkipAction () |
|
|
C# |
|
|
void SkipAction () |
|
|
C++ |
|
|
HRESULT SkipAction () |
|
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
Stop
Stops the playback of the presentation.
|
JavaScript |
|
|
Stop() |
|
|
C# |
|
|
void Stop() |
|
|
C++ |
|
|
HRESULT Stop() |
|
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
StopMovie
Stops the movie creation. If you stop the process before it is completed, the movie is created up to the moment this method is called.
|
JavaScript |
|
|
StopMovie () |
|
|
C# |
|
|
void StopMovie () |
|
|
C++ |
|
|
HRESULT StopMovie () |
|
Exceptions
See: HRESULT Return Values for a list of possible values returned by the HRESULT.
