Navigation
The Navigation settings allow you to define the free flight envelope. Navigation settings determine the characteristics and limits of the free flight but do not affect pre-determined fly-through such as fly-to object or fly-to location. The free flight is controlled with one or more of the following methods:
§ Mouse
§ Keyboard
§ Joystick
§ Control panel.

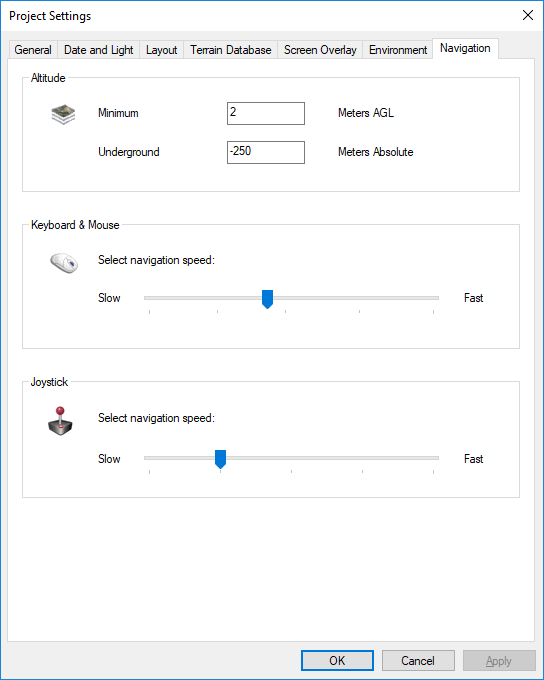

Project Settings - Navigation Tab
|
Parameter |
Activity |
|
Altitude |
|
|
Minimum Altitude |
Type the minimum altitude allowed for the plane in meters or feet above ground level. |
|
Underground Surface |
Type the altitude above the terrain database vertical datum base ellipsoid. |
|
Keyboard & Mouse |
|
|
Navigation Speed |
Slide the slider to set navigation speed when using the keyboard controls. See “Navigating Using the Keyboard” in the “Navigating in the 3D World” chapter for information about keyboard controls. |
|
Joystick |
|
|
Navigation Speed |
Slide the slider to set the joystick’s speed. |
