Parameter

Description

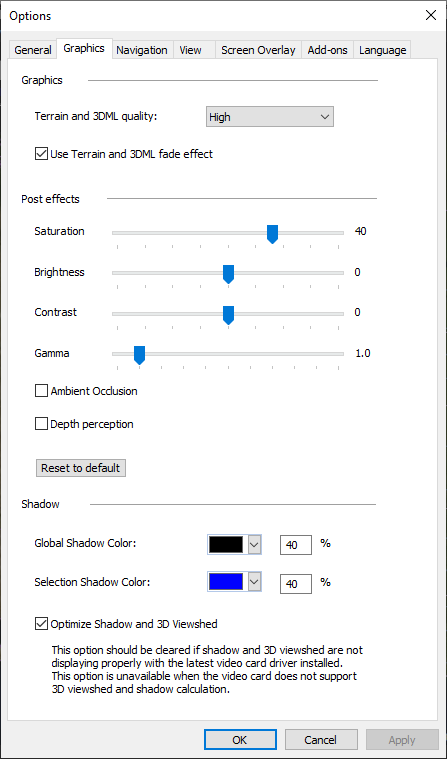

Graphics

Terrain and 3DML Quality

Select the resolution of the polygonal terrain model and 3DML models.

§  Select Normal for best performances.

§  Select High to quadruple the number of polygons used to create the terrain model for the area close to the camera, and to display a higher Level of Detail (LOD) for 3DML.

§  Select Best - FHD to quadruple the number of polygons that create the terrain model for the entire visible terrain, and to display the highest LOD for 3DML. This setting uses the most memory.

§  Select Best - 4K for Ultra High Definition (UHD) 4K quality, offering true 3840x2160 pixels render resolution.

Note:        This setting should only be applied with the Windows Display resolution set to 4K and the scale set to 100% (Windows Settings > System >Display).

Use Terrain and 3DML Fade Effect

Select Use Terrain and 3DML Fade Effect option to produce a smoother transition between terrain and 3DML imagery resolutions in Globe projects.

When you open a Globe project, if this option is enabled, TerraExplorer activates a morphing effect that switches resolution. This effect is activated when zooming in or out.

When terrain fade is disabled, a new block is displayed on the terrain instantaneously, with no fade.

Post Effects

Saturation

Drag the slider to adjust the vibrancy of the colors of the entire 3D view. The color saturation enhancement affects the terrain and all 2D and 3D objects.

Brightness

Drag the slider to adjust the light intensity of the entire 3D view.

Contrast

Drag the slider to adjust the distinction between lighter and darker areas of the entire 3D view.

Gamma

Drag the slider to adjust the gamma of the entire 3D view.

Ambient Occlusion

Select this option to enable Screen Space Ambient Occlusion (SSAO). This adds realism to 3D elements by approximating the way light radiates in real life, especially off of surfaces that are normally considered non-reflective. It operates on all models, shapes, and the terrain.

Note:    Enabling this feature requires a DirectX 10 supporting graphics card. Some performance penalty may be noticed, especially on low-end hardware configurations.

Depth Perception

Select this option to highlight depth changes in the 3D model to make it easier to recognize the model’s contours and shape. This can be especially useful for an untextured model or point cloud without colors.

Reset to Default

Click to restore the default Post Effects settings.

Shadows

Global Shadow Color

Select the shadow color and opacity that should be applied when a shadow is created for all buildings and 3D models in the 3D Window. See “Global Shadow” in the “Analysis Tools” chapter for more information.

Selection Shadow Color

Select the shadow color and opacity that should be applied when creating a shadow for selected objects. See “Selection Shadow” in the “Analysis Tools” chapter for more information.

Optimize Shadow and 3D Viewshed

This option should be cleared if shadow and 3D viewshed are not displaying properly with the latest graphics card driver installed.
This option is unavailable when the graphics card does not support 3D viewshed and shadow calculation.
